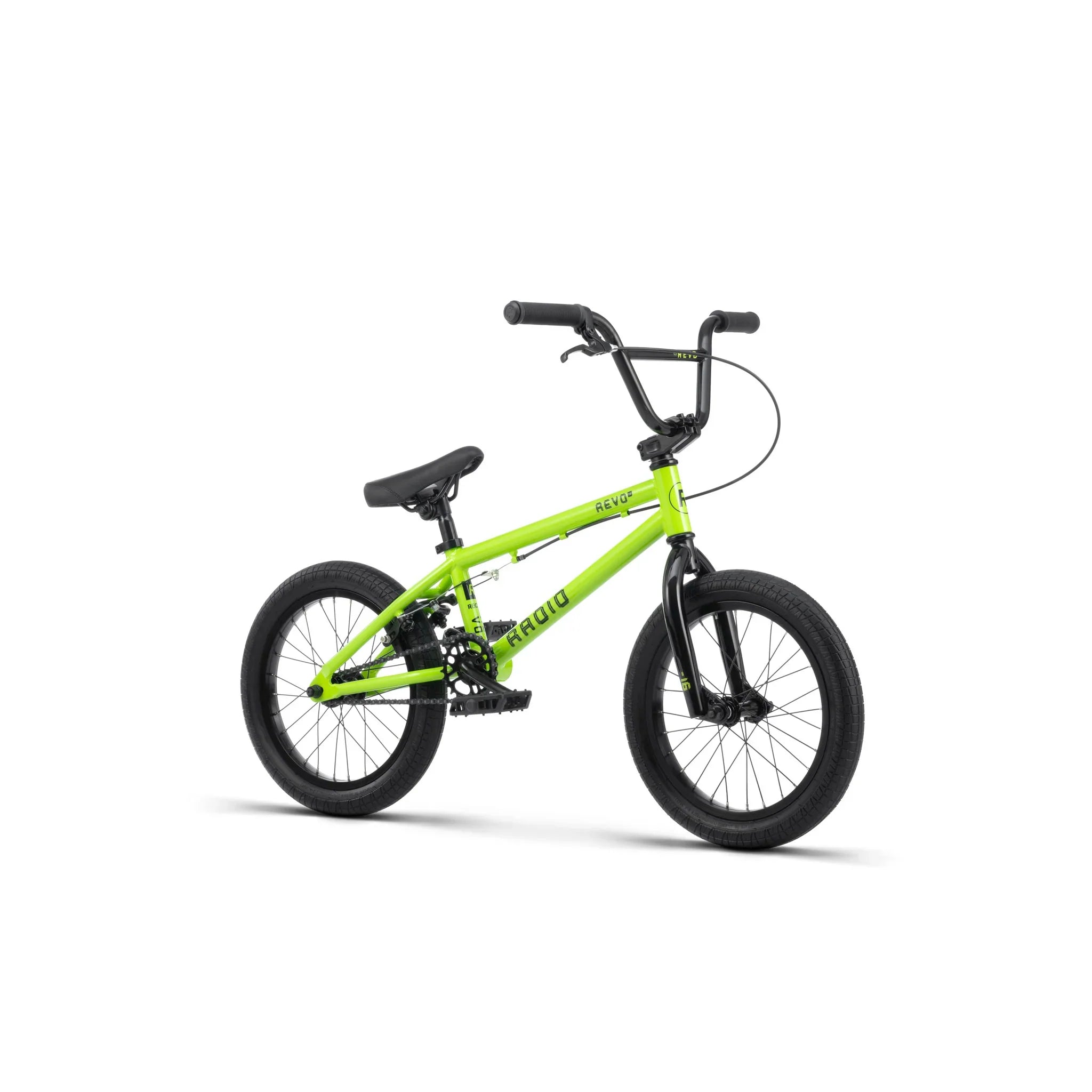

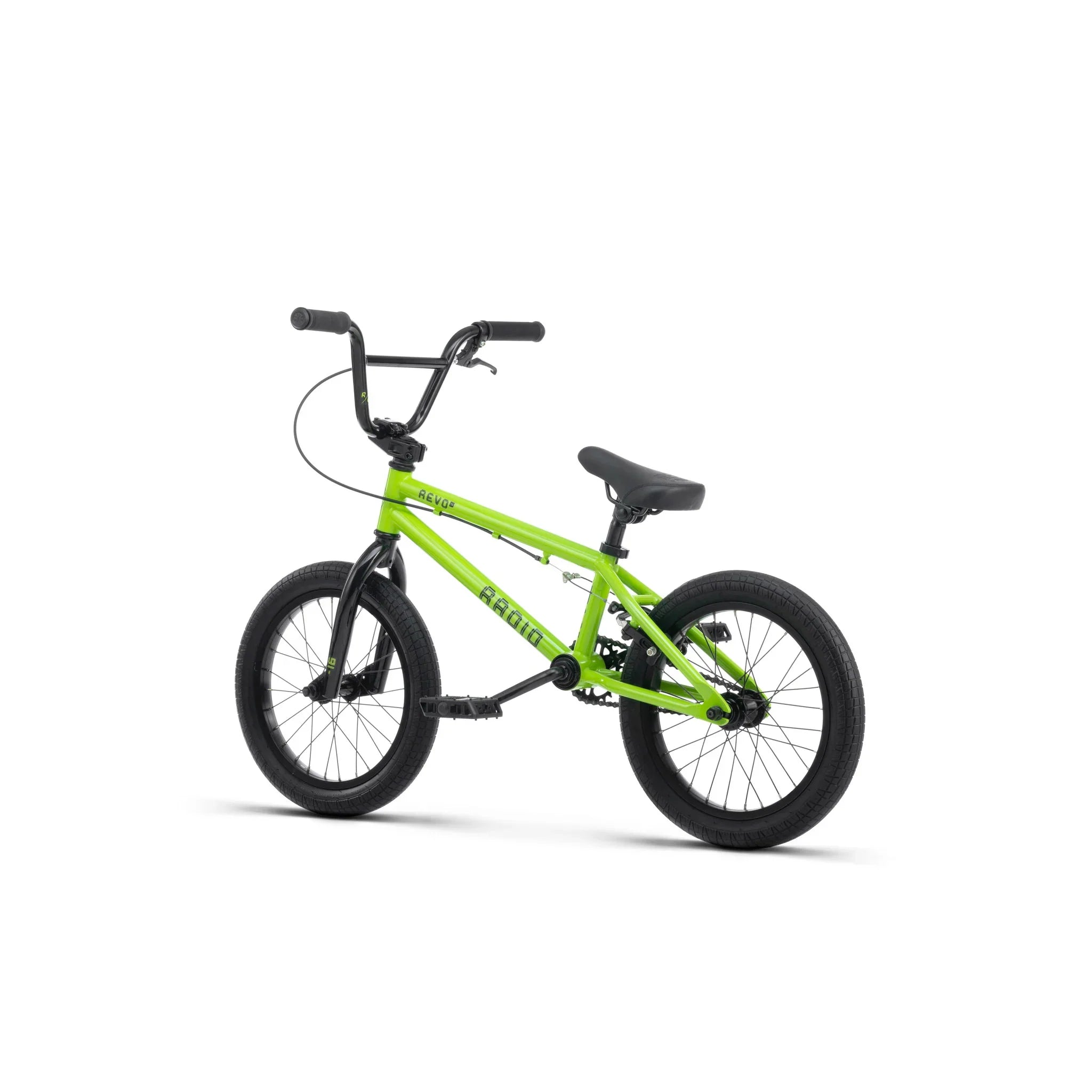

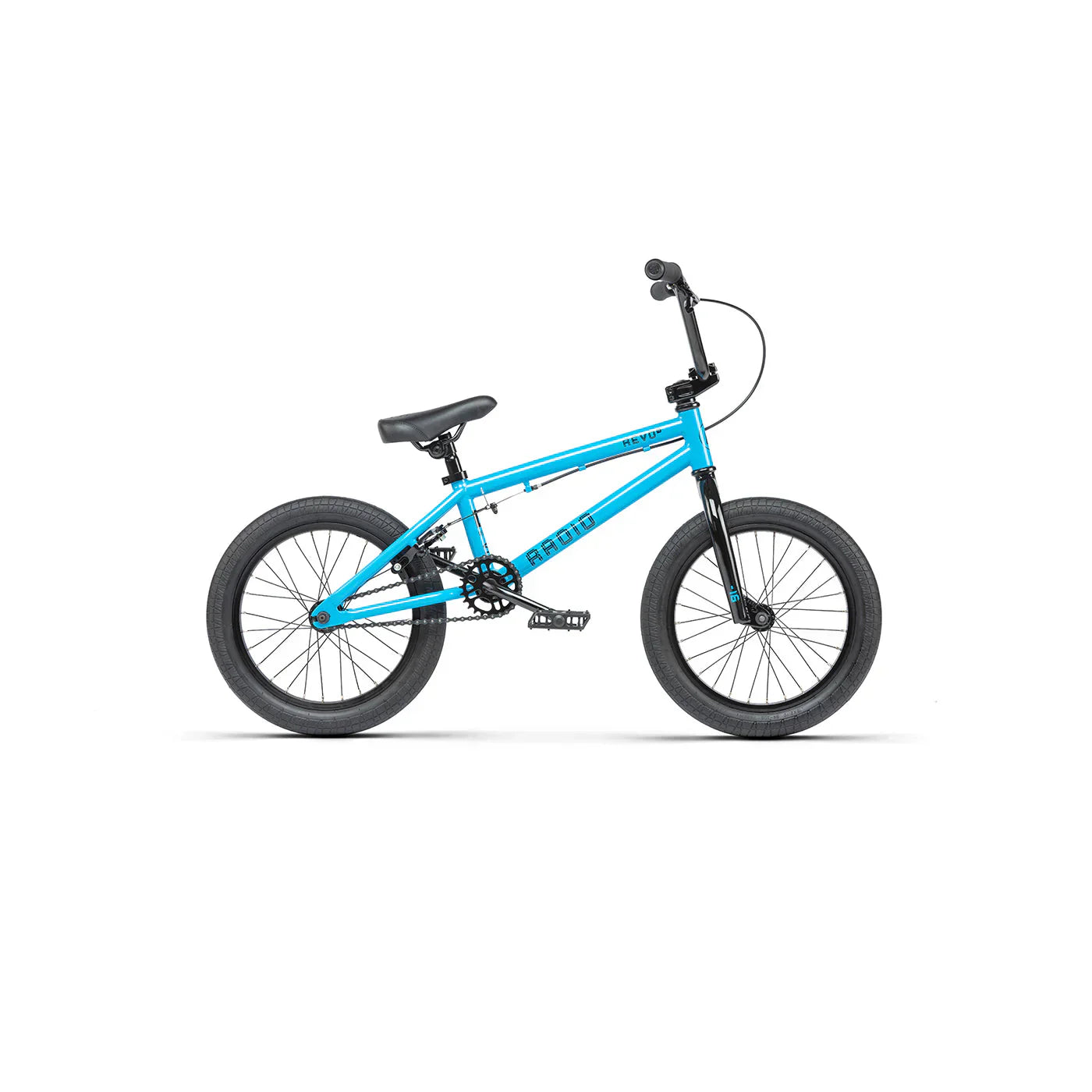

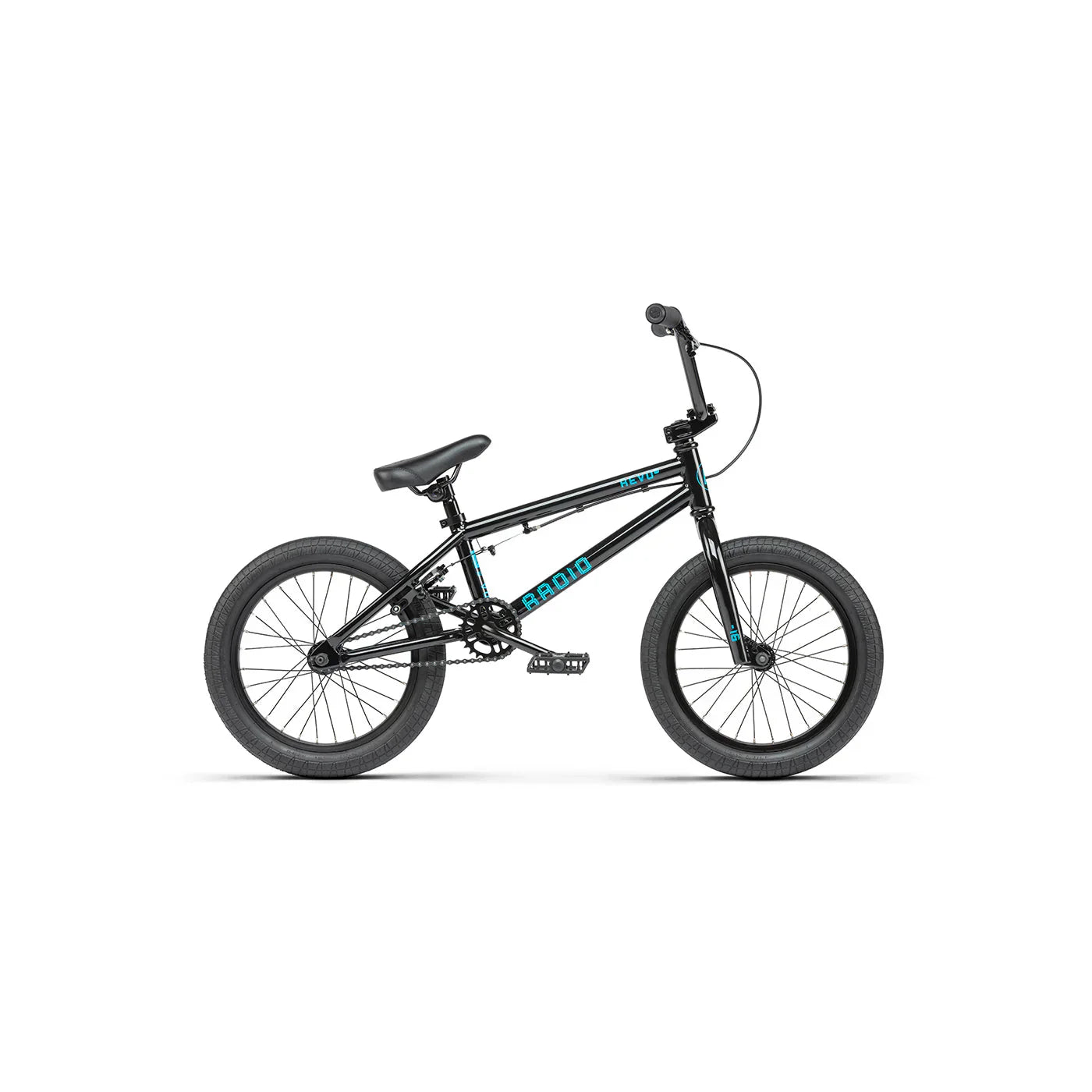

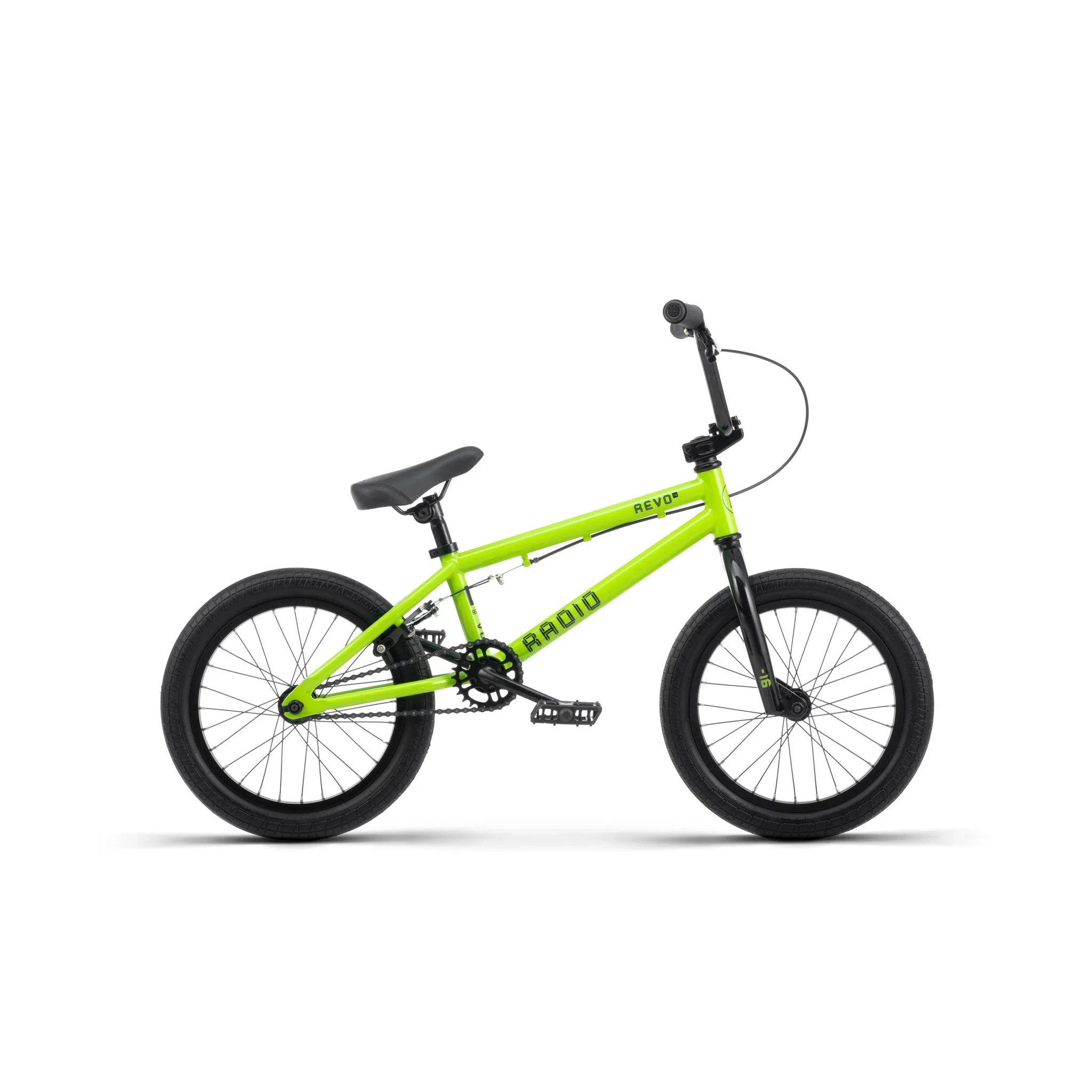

RADIO REVO 16 COMPLETE BIKE

£389.00
By RADIO BIKES
Colour
Wheel Size
Toptube Length
Description
  • FRAME: RADIO “REVO 16” frame, full 1020 hi-ten
  • FORK: RADIO “ROOKIE 16” fork, hi-ten
  • HANDLEBAR: RADIO “REVO 16” bar, hi-ten
  • GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm
  • STEM: SALT “JUNIOR” topload stem, 40mm reach
  • HEADSET: FSA “a-head-set” loose ball
  • BRAKE LEVER: RADIO “JUNIOR 16” brake lever, alloy
  • BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear
  • CRANK: RADIO “ROOKIE” 1pc crank, forged, crmo, 127mm
  • BB: USA size, loose ball
  • PEDALS: RADIO “Rookie” Nylon Pedals
  • CHAIN: KMC “S1” chain
  • SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
  • DRIVER: 9t, cassette
  • FRONT HUB: RADIO “Rookie” steel hub, lb, 28h
  • REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 3/8″ axle, 28h
  • FRONT RIM: SALT “AM” rim, straight single wall, 28h
  • REAR RIM: SALT “AM” rim, straight single wall, 28h
  • SEAT: RADIO “Century” railed seat
  • SEAT POST: RADIO ‘AM” alloy seatpost
  • SEAT CLAMP: RADIO seat clamp, slim, alloy
  • TIRES: RADIO “ROOKIE” tires, 16″x2.1″, front & rear

Weight: 9.95kg / 21.94lbs

Frame Geometry:

Top Tube Length 16"
Chain Stay Length 11.2"
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height  9.75"
Standover Height 6.6"



Handlebar Geometry:

Rise 6.8"
Width 23.6"
Backsweep 10°
Upsweep 3°
