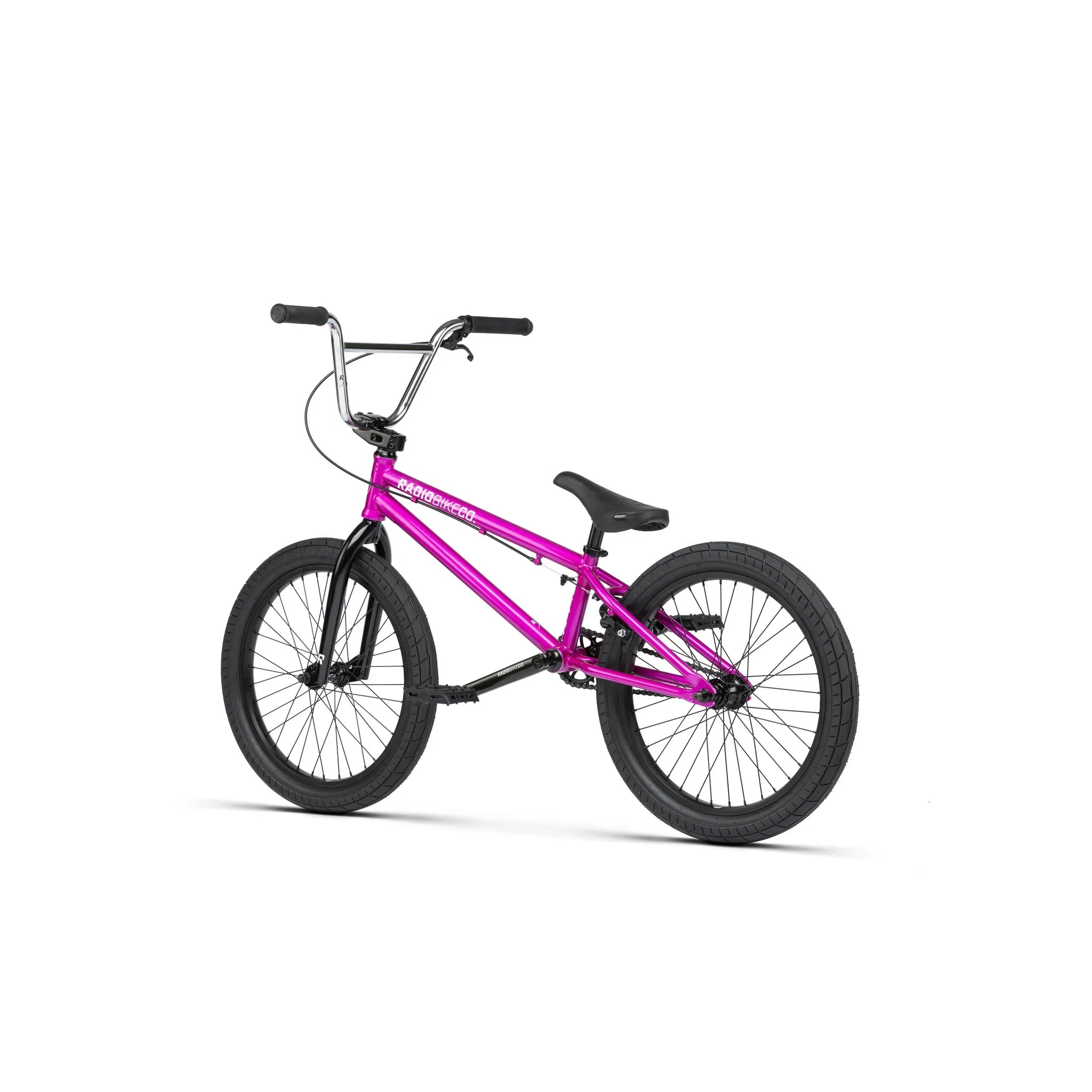

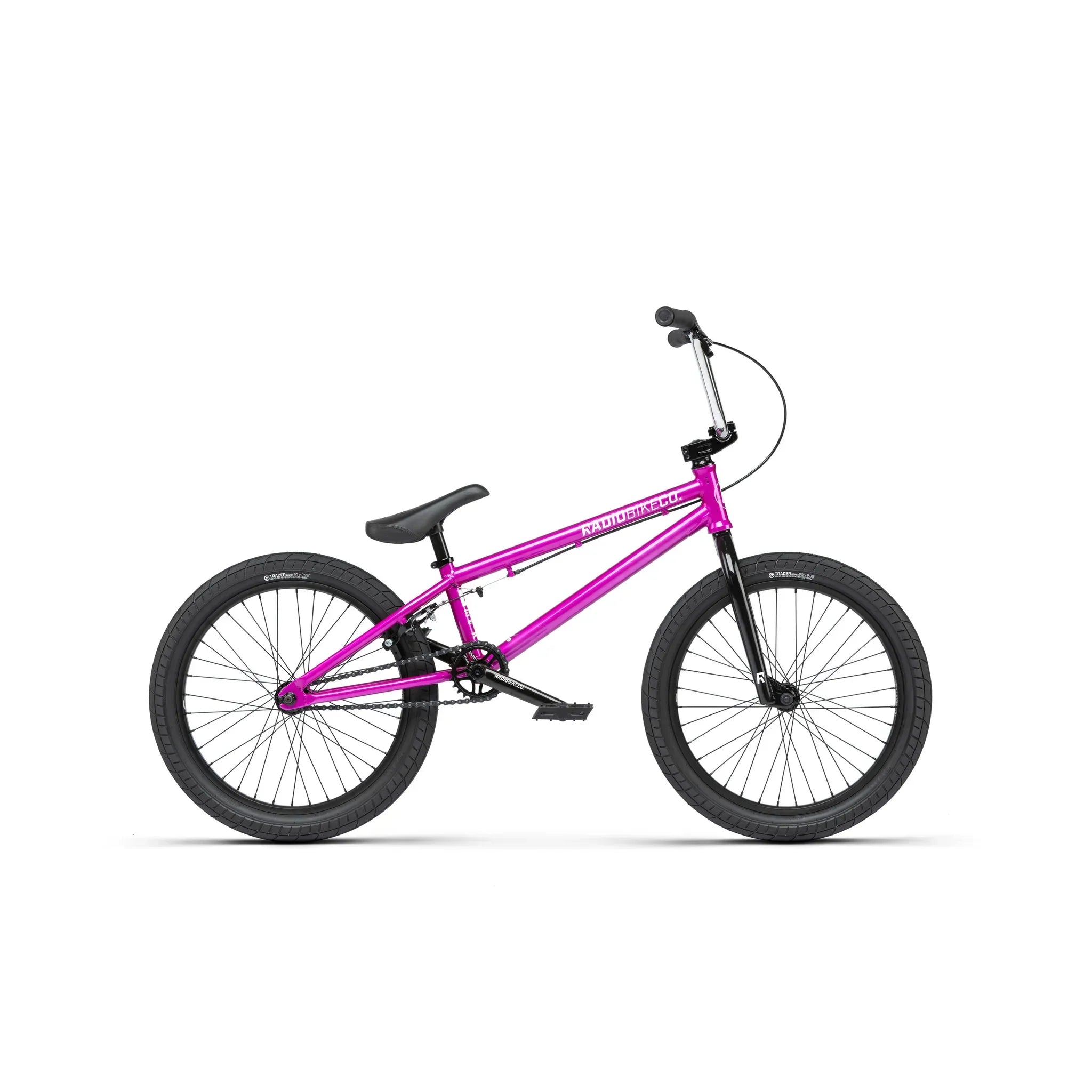

RADIO SAIKO 20 COMPLETE BIKE

£485.00
By RADIO BIKES
Colour
Toptube Length
Wheel Size
Description
  • FRAME: RADIO "SAIKO 20" frame, crmo down tube, 1020 hi-ten
  • FORK: RADIO "SAIKO 20" fork, 1020 hi-ten, crmo steerer, tapered legs
  • HANDLEBAR: RADIO "SAIKO" bar, 1020 hi-ten
  • GRIPS: RADIO "AM" grips, flangless, 150mm
  • STEM: SALT "PRO" topload stem, 50mm reach
  • HEADSET: SALT "PRO" integrated headset, sealed bearing
  • ROTOR: holes for removable gyro tabs
  • BRAKE LEVER: RADIO "AM" brake lever, alloy, rear
  • BRAKE: RADIO "AM" u-brake, alloy, rear
  • CRANK: RADIO "AM" 3pc crank, tubular, crmo, 165mm, 8 spline
  • BB: RADIO "MID" bb set, press fit, sealed bearing
  • PEDALS: RADIO "PRO" pedals, nylon/fiberglass
  • CHAIN: SALT "AM" chain, WZ1 type
  • SPROCKET: RADIO "VISION" sprocket, steel, 25t
  • DRIVER: cassette driver, 9t, lb
  • FRONT HUB: RADIO "AM" hub, alloy, loose ball, 3/8"s male axle, 36h
  • REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
  • FRONT RIM: RADIO "AM" rim, single wall
  • REAR RIM: RADIO "AM" rim, single wall
  • SEAT: RADIO "CENTURY" combo seat, slim padded
  • SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
  • TIRES: SALT "TRACER" tires, 2.35", front & rear

Weight: 11.9kg / 26.23lbs



Frame Geometry:

Top Tube Length 19.25"
Chain Stay Length 13.2"
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height  11.75"
Standover Height 8"



Handlebar Geometry:

Rise 8.2"
Width 28"
Backsweep 11°
Upsweep 2°
