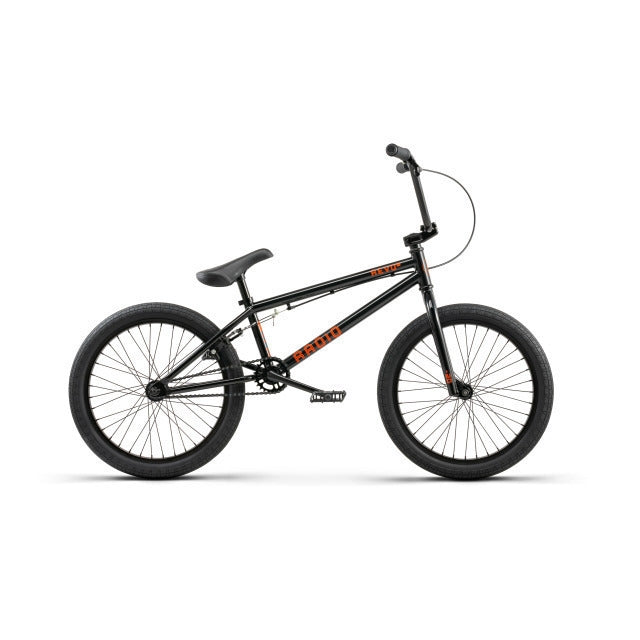

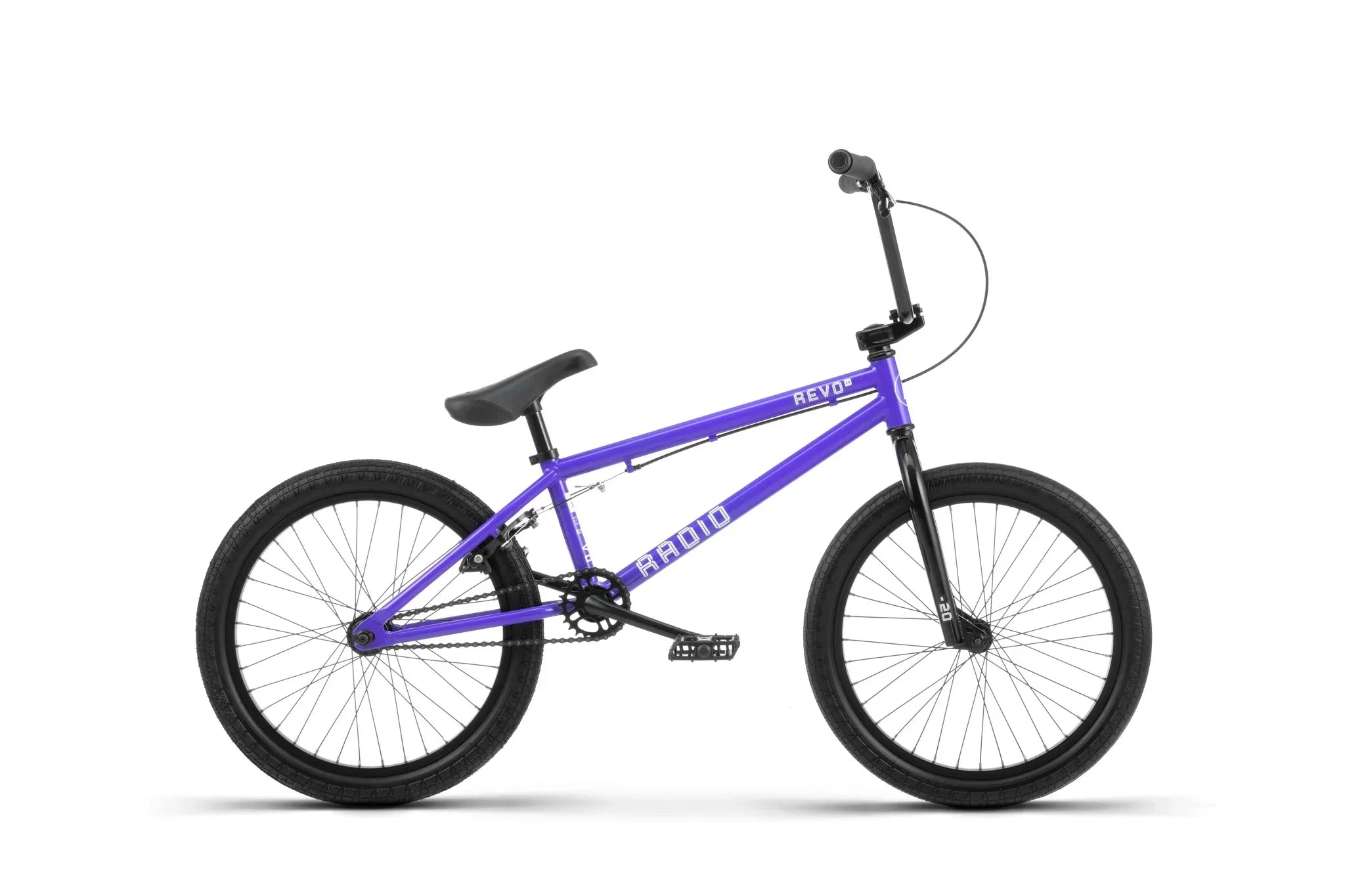

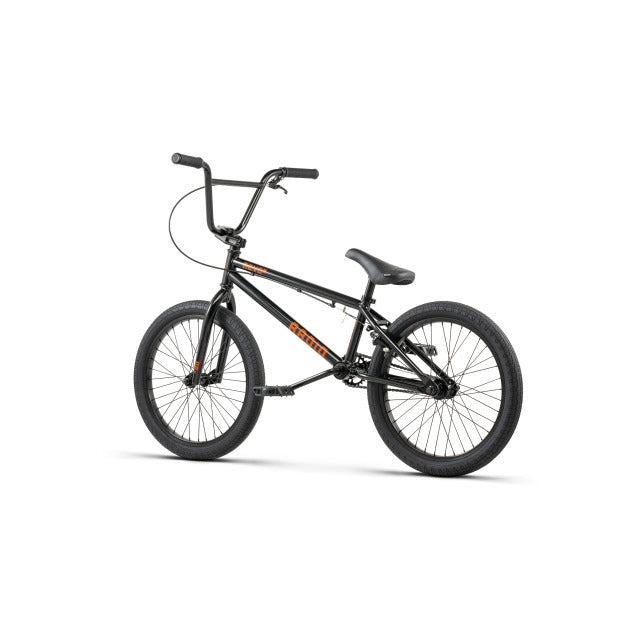

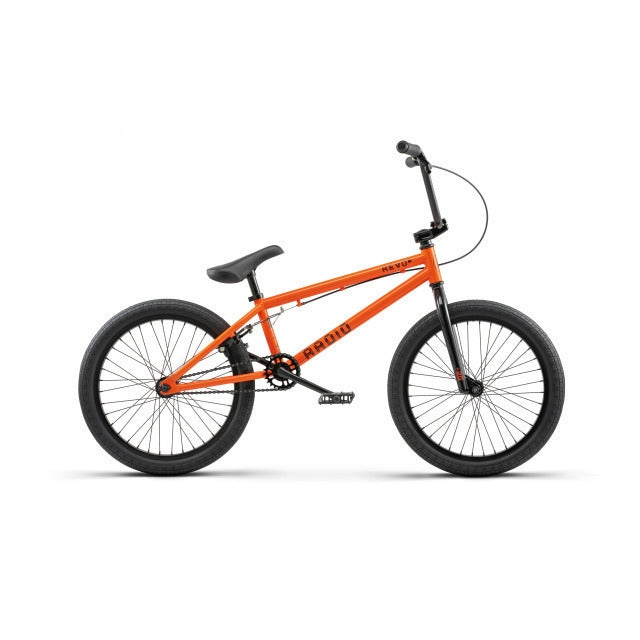

RADIO REVO 20 COMPLETE BIKE

£395.00
By RADIO BIKES
Colour
Toptube Length
Wheel Size
Description

Full Spec:

  • FRAME: RADIO “REVO 20” frame, full 1020 hi-ten
  • FORK: RADIO “AM 20” fork, 1020 hi-ten, crmo steerer
  • HANDLEBAR: RADIO “REVO 20” bar, hi-ten
  • GRIPS: RADIO “AM” grips, flangeless, 150mm
  • STEM: SALT “AM” topload stem, 50mm reach
  • HEADSET: FSA A-headset, loose ball
  • BRAKE LEVER: RADIO “AM” brake lever, alloy
  • BRAKE: RADIO "AM" u-brake, alloy, rear
  • CRANK: RADIO "ROOKIE" 1pc crank, forged, crmo, 170mm
  • BB: RADIO "US" bb set, loose ball
  • PEDALS: RADIO “ROOKIE” pedals, nylon
  • CHAIN: KMC “S1” chain
  • SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
  • DRIVER: cassette driver, 9t
  • FRONT HUB: RADIO “ROOKIE” hub, steel, lb, 3/8″s, 36h
  • REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9t, 14mm axle, 36h
  • FRONT RIM: SALT “AM” rim, straight single wall, 36h
  • REAR RIM: SALT “AM” rim, straight single wall, 36h
  • SEAT: RADIO "CENTURY" combo seat, slim padded
  • SEAT CLAMP: RADIO seat clamp, slim, alloy
  • TIRES: RADIO “ROOKIE” tires, 20″x2.2″, front & rear

Weight: 12.22kg / 26.94lbs



Frame Geometry:

Top Tube Length 20"
Chain Stay Length 13"
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height  11.75"
Standover Height 7.8"



Handlebar Geometry:

Rise 8.75"
Width 29"
Backsweep 11°
Upsweep 2°
